LandingEdge Release Notes

​

Expanded PLC Options (v2.10.31)

​

OCR with LandingEdge & Docker

​

March 25, 2024 - v2.7.204

• For Windows users only: When you install LandingEdge, LandingEdge will now check if your system has Microsoft Visual C++ Redistributable. If this package is not detected, LandingEdge will install it. For context, LandEdge requires the Microsoft C and C++ (MSVC) runtime libraries. The Microsoft Visual C++ Redistributable package installs these libraries.
• We fixed an issue that caused OPC UA controller connections to PLCs to fail. For more information about using PLCs with LandingEdge, go to PLC Workflow.

​

February 22, 2024 - v2.7.188

1. Open LandingEdge.
2. Open or create an Inspection Point.

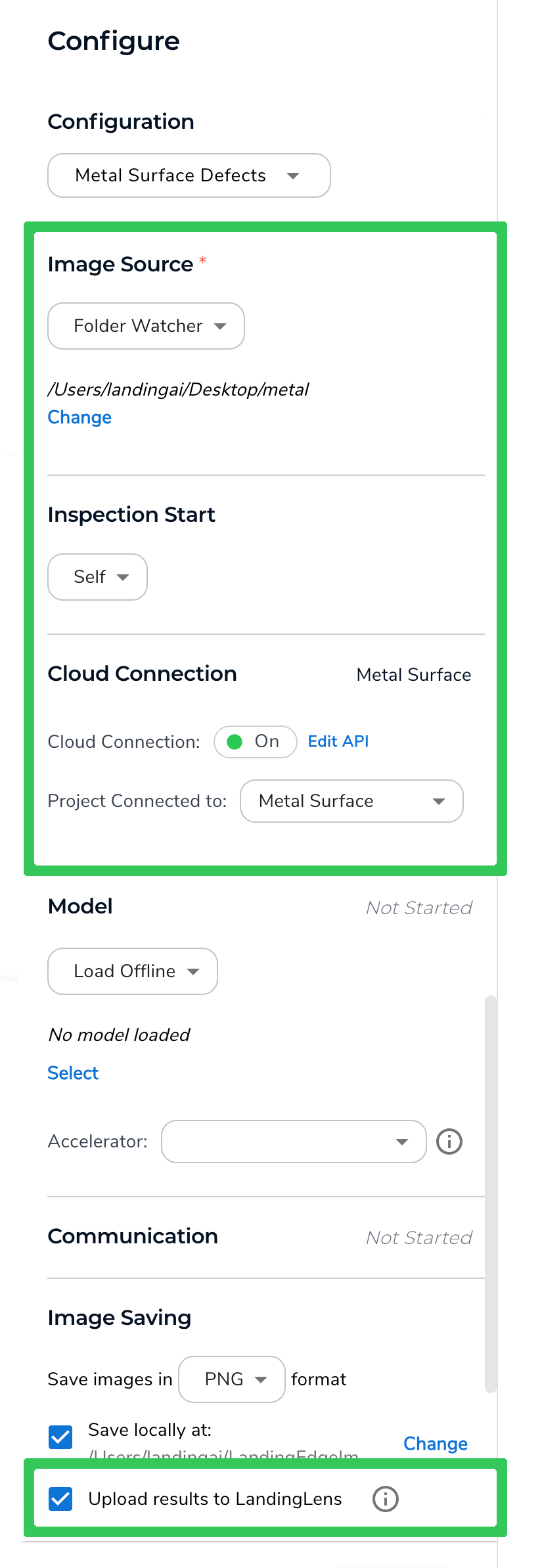

3. Set up the Image Source, Inspection Start, and Cloud Connection sections.
4. Leave the Model section blank.
5. In the Image Saving section, select the Upload Results to LandingLens checkbox.
6. Click Save Configuration.
7. When you’re ready to upload images, click Run Now and upload the images using the method you selected in the Image Source section. For example, if you selected Folder Watcher, move the images you want to upload to the folder you selected.
8. To see the images in LandingLens:1. Open the project in LandingLens.
9. Click Deploy.
10. In the Self-Hosted Deployment section, click the name of the Inspection Point that you created in LandingEdge.
11. The images display.

​

February 15, 2024 - v2.7.167

​

Expanded Support for Industrial Cameras

​

JSON Results Include Model ID and Latency

​

Send Images for Reference via URL

​

Bug Fixes

• We fixed an issue that occurred in certain use cases with segmentation mask calculation.
• We fixed issues related to the user interface.
• We fixed issues related to running multiple GPUs.

​

September 26, 2023 - v2.6.87

​

Bug Fixes

• After running inference on an Anomaly Detection model, the results now display correctly in the user interface. (Anomaly Detection is deprecated and only available to legacy users.)
• Role names are now easier to see in the User Menu.

​

August 24, 2023 - v2.6.45

• Roles and Permissions
• Assign GPUs to Inspection Points
• Configurations

​

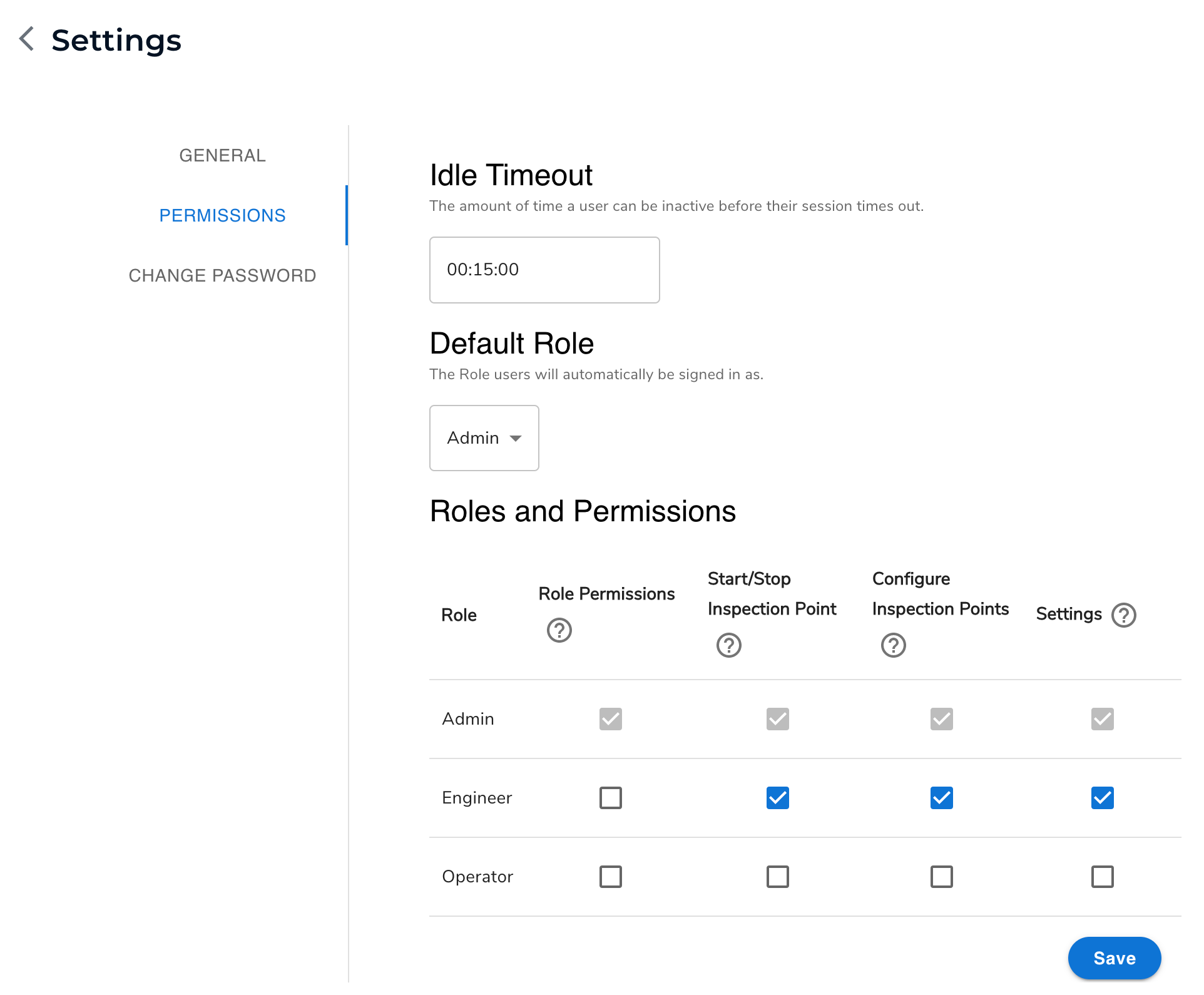

Roles and Permissions

• Admin: Can access and edit all parts of LandingEdge.
• Engineer: Can access and edit all parts of LandingEdge except for editing Role permissions.
• Operator: Has read-only access.

​

Do I need to do anything now that there are Roles?

​

Assign GPUs to Inspection Points

​

Configurations

​

If You Don’t Need Multiple Configurations

​

July 11, 2023 - v2.5.10

public void Run()
{
    if (Result.PrimaryResult is not ClassificationResult clf)
    {
        // not a classification result
        // this script is only applicable to classification, so exit the script
        return;
    }

    Log($"All classes in model: {string.Join(", ", AllClasses)}");
    Log($"Class scores for image: [{string.Join(", ", clf.Predictions.RawScores)}]");

    for (int i=0; i<AllClasses.Count; i++)
    {
        Log($"Class '{AllClasses[i].Name}' score = {clf.Predictions.RawScores[i]}");
    }
}

​

July 7, 2023

• You can now use LandingEdge to pull stills (individual frames) from videos and run inference on those images. For more information, go to Image Source.
• Support for the new API Key system. For more information, go to API Keys.
• If you use LandingEdge with a PLC, you can now configure an Error Code output. For more information, go to Outputs.
• A few behind-the-scenes bug fixes.

​

June 14, 2023

​

Download a Free Trial of LandingEdge

​

June 8, 2023

​

What’s New

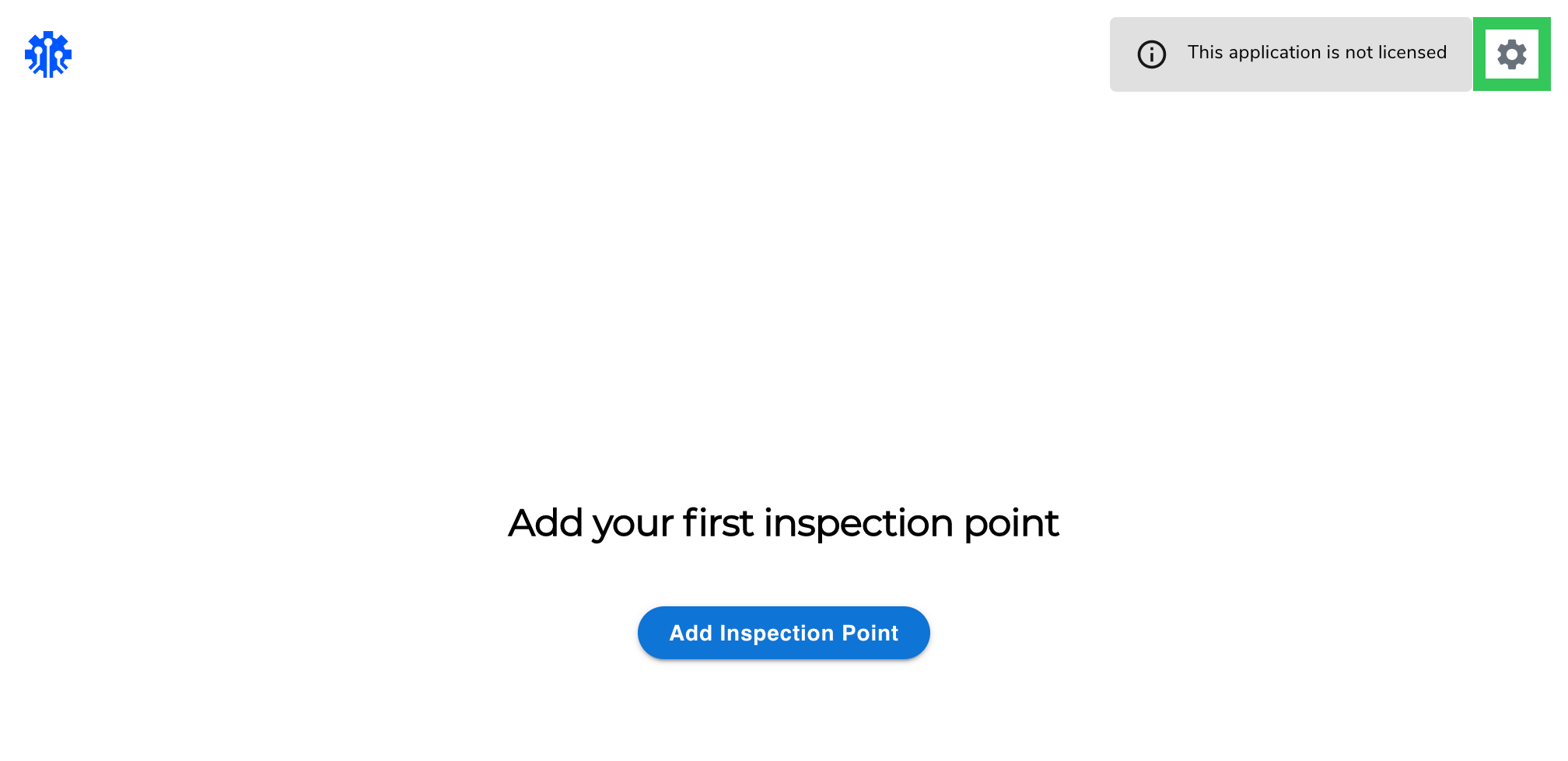

• The Settings icon is now permanently on the LandingEdge homepage, even if you haven’t created any Inspection Points yet. Previously, you could only access Settings after setting up an Inspection Point. This makes it easier to get your License Key, which you can access in Settings > Update License.

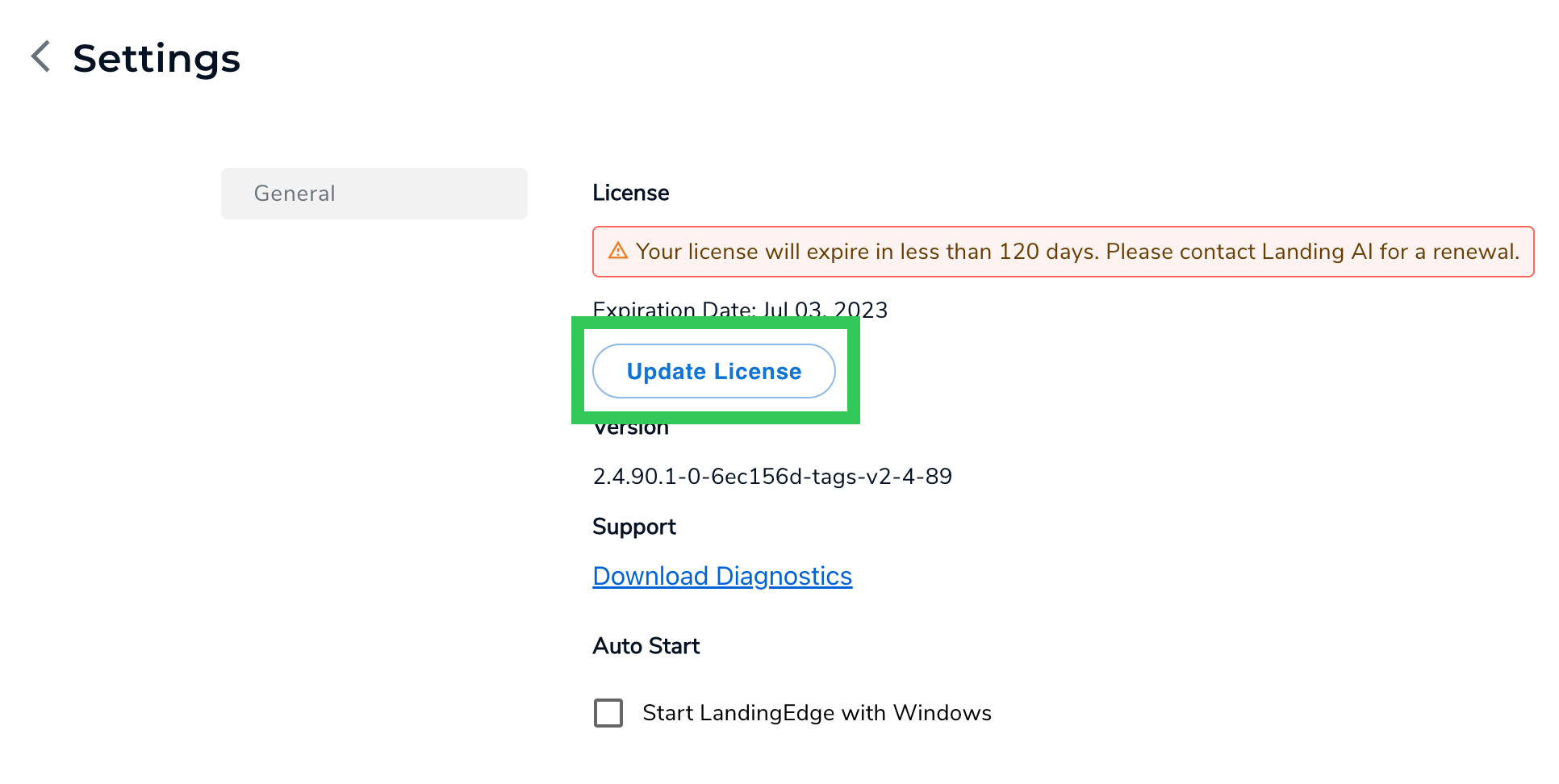

• We’ve made it easier to see when your license will expire. If your license will expire within 120 days, a message on the Settings page notifies you how many days are left until the expiration date.

• If you try to upload an invalid license, you now get a pop-up letting you know that the license isn’t valid.
• To make it easier to understand some of the features, we updated some of the user interface text throughout LandingEdge.

​

Bug Fixes

• We fixed a bug that caused issues when stopping inspections in some situations.
• We fixed a few broken external references in our C# scripts.

​

May 12, 2023

​

What’s New

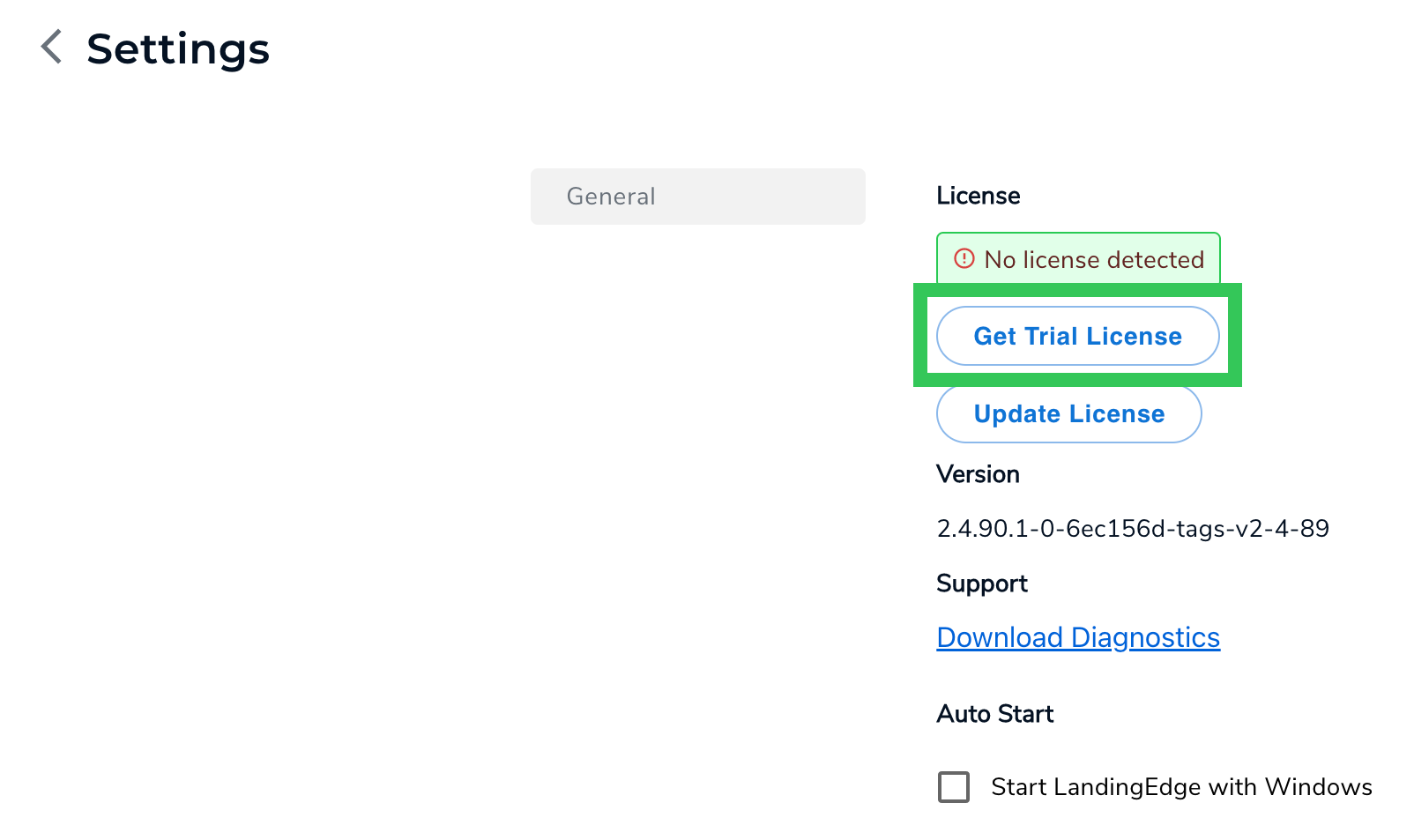

• You can now get a 14-day free trial of LandingEdge.
• LandingEdge now notifies you when your LandingEdge Deployment License will expire within 120 days, so that you can request a new license. LandingEdge also notifies you once your license has expired. Once you have your updated license, click the notification to add your license to LandingEdge.
• You can now update your LandingEdge license even if your current license is still valid. Previously, you could only add a LandingEdge license if your previous one was expired. With this new workflow, you can now avoid lapses to your LandingEdge functionality.
• If you’ve enabled the Upload Results to LandingLens setting, images uploaded to LandingLens via LandingEdge now have image metadata.
• If you’ve enabled the Upload Results to LandingLens setting, you can run a script to automatically skip saving certain images. For more information, go here.

​

Bug Fixes

• Fixed a bug that caused changes to Inspection Point names to not save. LandingEdge now correctly saves changes to Inspection Point names.
• Fixed a bug that caused the PLC information to not display in the Communication settings. The information displays correctly now.

​

April 12, 2023

​

April 5, 2023

​

What’s New

• The Settings module now shows your LandingEdge version. For more information, go to Version.
• You have more ways to trigger image capture. For more information, go to Inspection Start.- Self: Configure your camera or hardware device to trigger when the image will be taken. This is the only option for WebAPI and Folder Watcher.
• Manual: In Manual mode, click the Grab a Frame button on the Monitor page to trigger the camera to capture the image.

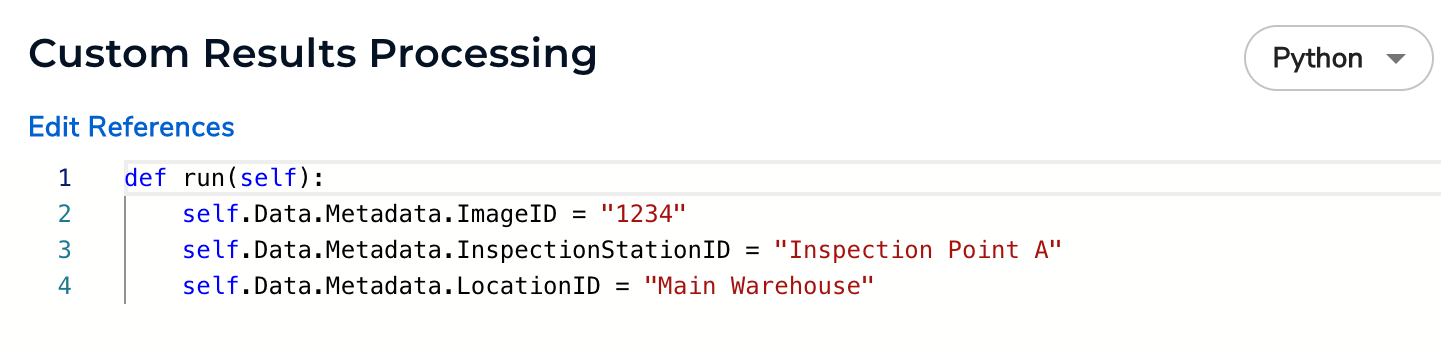

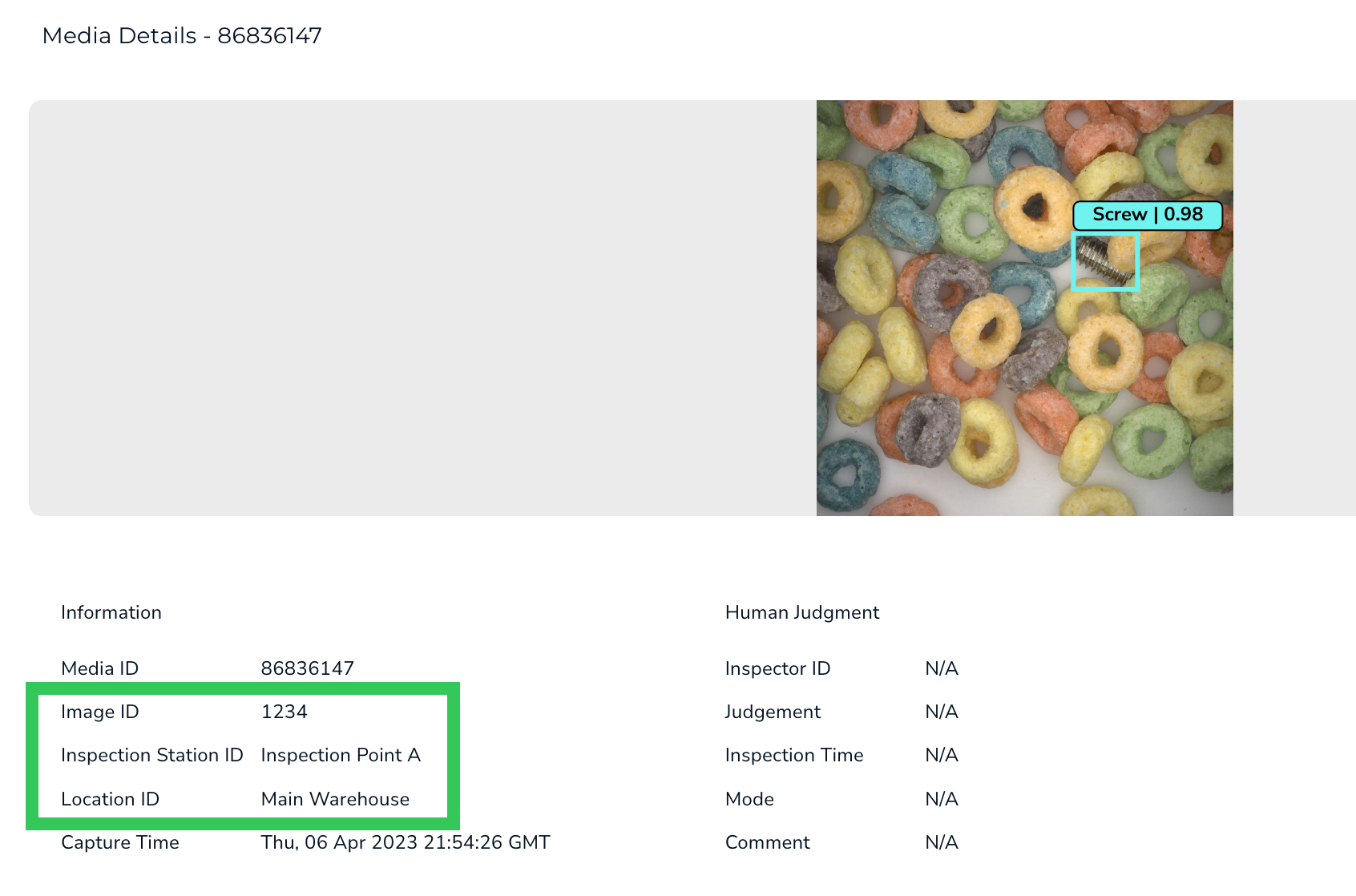

• You can now add image metadata by using the Custom Scripting feature. For more information, go to Add Metadata to Images.

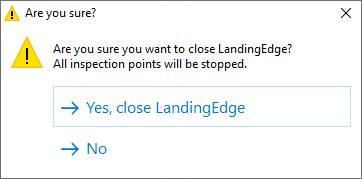

• When you attempt to close LandingEdge, you are now prompted to confirm the action, because closing the application stops all Inspection Points.

​

Bug Fixes

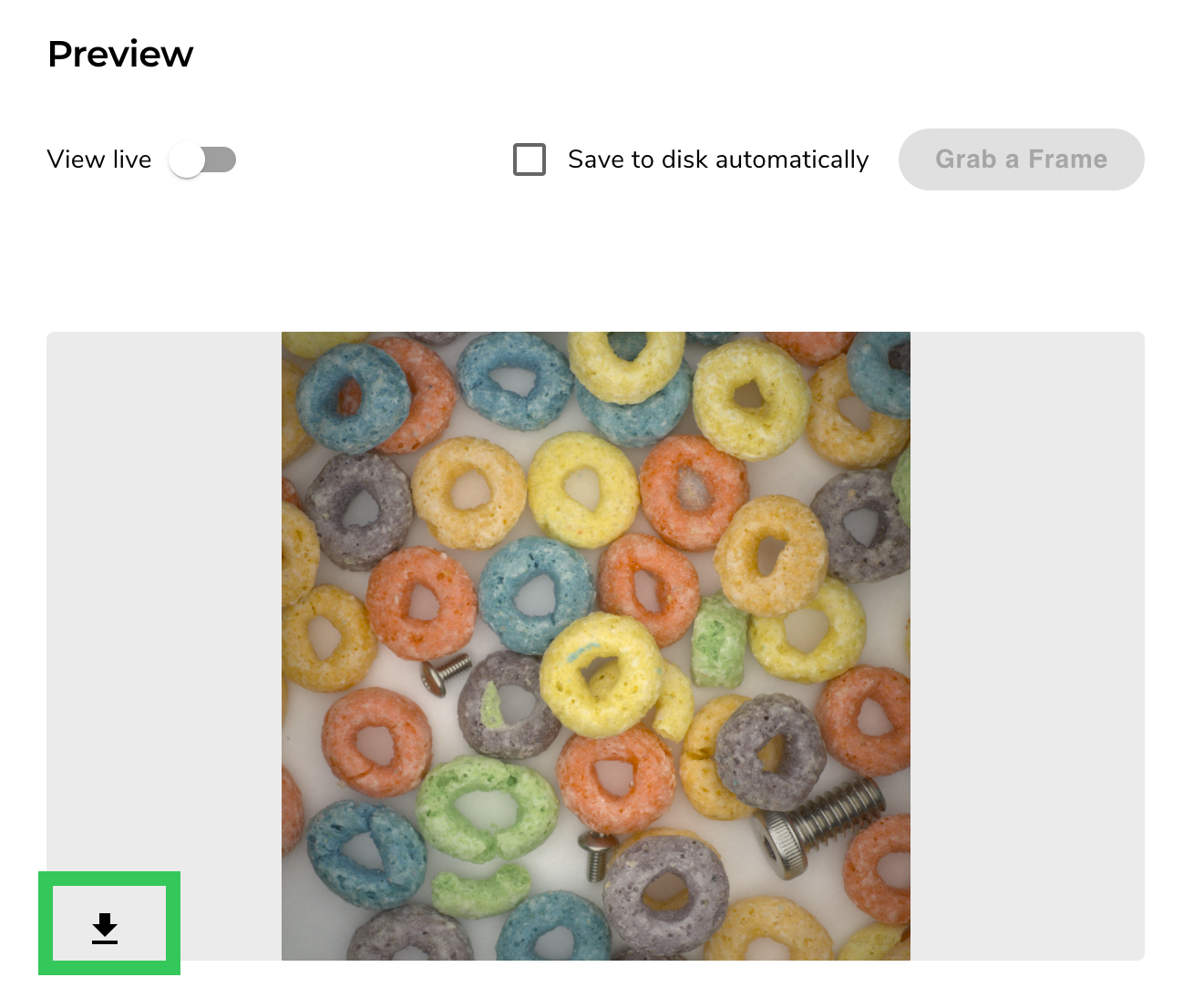

• You can now download images that display in the image Preview. Previously, the download button was deactivated.
• Resolved issues with incorrect results for Object Detection Projects that occurred in some systems.
• Resolved issues with high load conditions.
• Fixed miscellaneous bugs.

​

March 23, 2023

​

March 10, 2023

• Any Inspection Points from LandingEdge v1 will not carry over to LandingEdge v2 and will need to be recreated as needed.
• Webcams are not supported in LandingEdge v2.
• The background application LandingEdge Inference Engine has been integrated into LandingEdge v2 and will no longer display as a separate application on your desktop.
